PRODUCT
| Model | Focal Length | Sensor Size | Field of view | Resolution | Spec sheet | ||
|---|---|---|---|---|---|---|---|
| D | H | V | |||||
27620T-5M
|
2.7mm | 1/2.7" | 134.0 | 126.0 | 71.0 | 5MP |
|
80520-5M
|
8.0mm | 1/2.7" | 45.0 | 42.0 | 25.0 | 5MP |
|
36423-2MAS
|
3.6mm | 1/2.7" | 117.1 | 98.5 | 52.2 | 2MP |
|
60516-4MAS
|
6.0mm | 1/2.7" | 67.9 | 58.6 | 31.7 | 4MP |
|
30520Y-3MAS
|
3.0mm | 1/2.7" | 140.9 | 114.0 | 60.5 | 3MP |
|
80660-2M
|
8.0mm | 1/2.7" | 50.2 | 42.2 | 26.0 | 2MP |
|
14620YMAS
|
1.4mm | 1/3.2" | 205.2 | 167.5 | 130.0 | 1.2MP |
|
16620MAS
|
1.6mm | 1/3" | 200.0 | 172.0 | 127.0 | 1.2MP |
|
20624-5MAS
|
1.9mm | 1/2.7" | 150.0 | 144.4 | 106.8 | 5MP |
|
18610P-AS
|
1.85mm | 1/4" | 137.5 | 110.0 | 82.8 | VGA |
|
DW9802
|
3.7mm | 1/3" | 104.8 | 73.8 | 52.2 | VGA |
|
DW9702
|
3.4mm | 1/3" | 108.4 | 84.8 | 63.0 | VGA |
|
VIR64425
|
6.4mm | 1/3" | 53.4 | 42.7 | 32.0 | VGA |
|
DW9607
|
6.0mm | 1/3" | 48.9 | 39.9 | 30.3 | VGA |
|
22724-3MAS
|
2.2mm | 1/2.5" | 108.8 | 88.8 | 85.0 | 3MP |
|
18524MAS
|
1.8mm | 1/3" | 177.6 | 154.2 | 87.0 | 1.3MP |
|
12624MAS
|
1.2mm | 1/3" | 210.0 | 192.8 | 122.8 | 1.3MP |
|

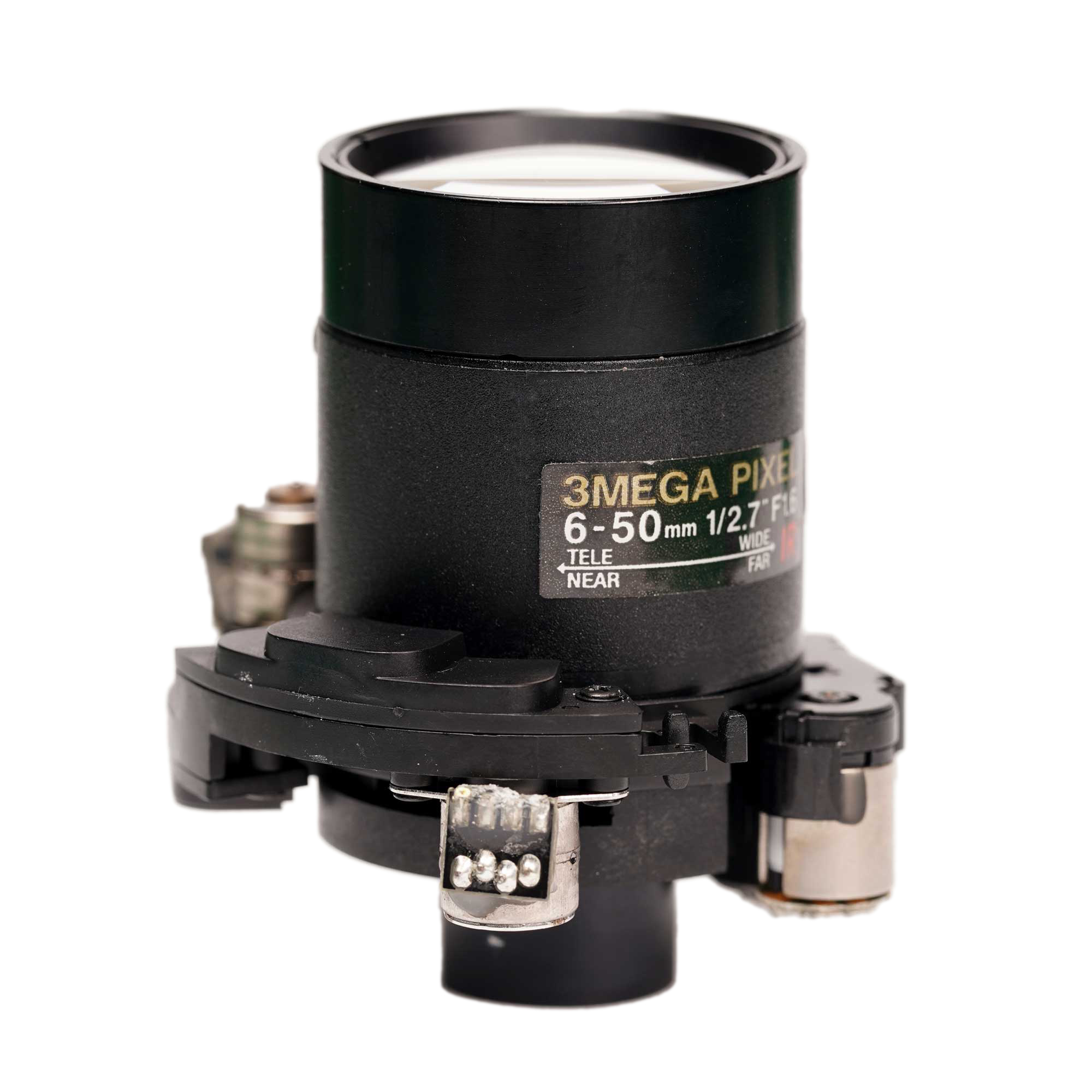

60500-3MAS
|
6.0~50.0mm | 1/2.7" | 65.9~7.9 | 55.7~6.9 | 30.3~3.9 | 3MP |
|

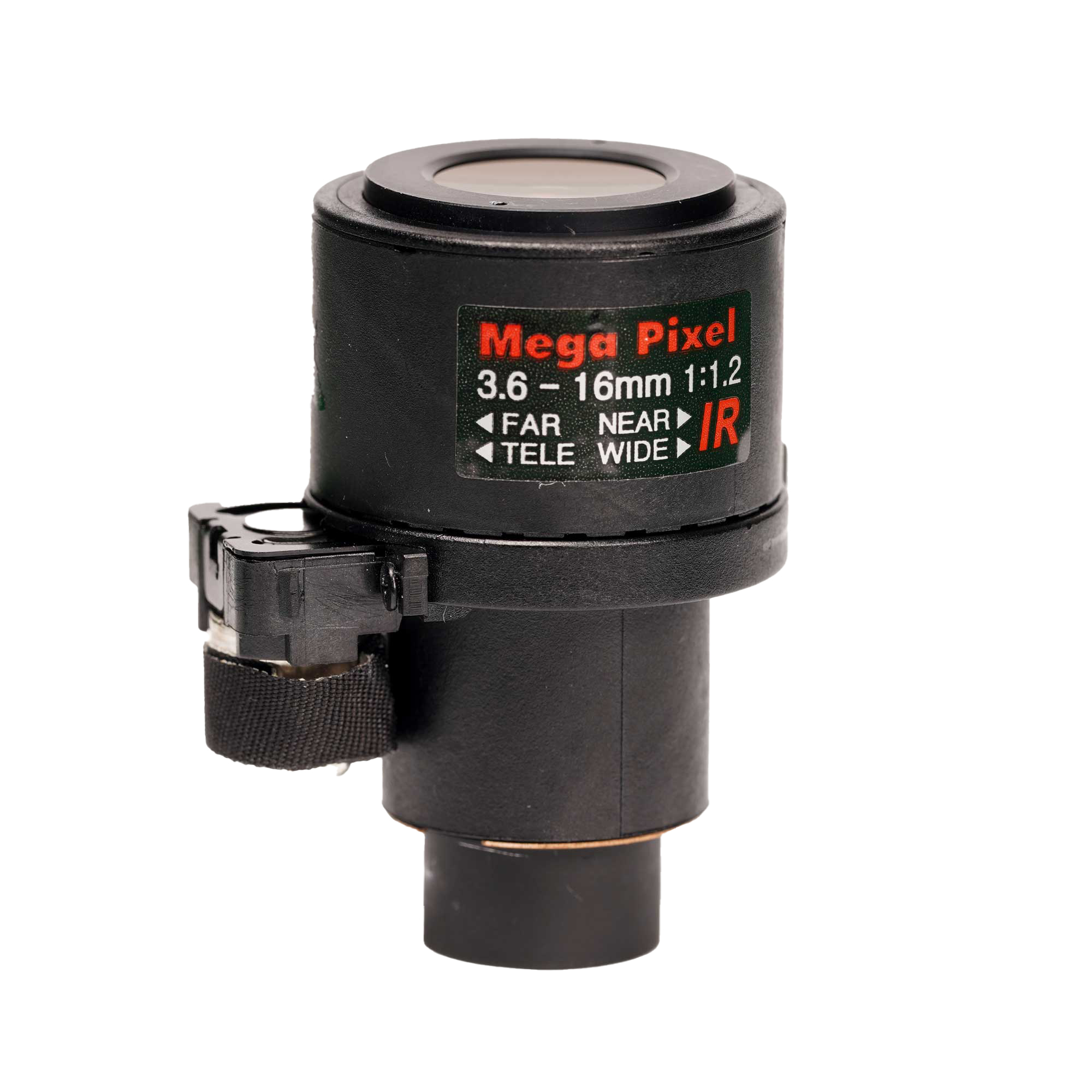

VIR36160MAS
|
3.6~16.0mm | 1/3" | 96.6~56.6 | 73.4~20.4 | 53.3~15.3 | 1.3MP |
|
DW9803
|
4.3mm | 1/3" | 96.1 | 69.5 | 49.6 | VGA |
|
DW33524K
|
3.3mm | 1/3" | 128.0 | 83.0 | 57.1 | VGA |
|
DW350420
|
35.0mm | 2/3" | 17.9 | 14.4 | 10.8 | VGA |
|
DW9711
|
16.0mm | 1/3" | 21.1 | 17.0 | 12.8 | VGA |
|
VIR80620-3M
|
8.0mm | 1/2.7" | 46.3 | 40.6 | 23.2 | 3MP |
|

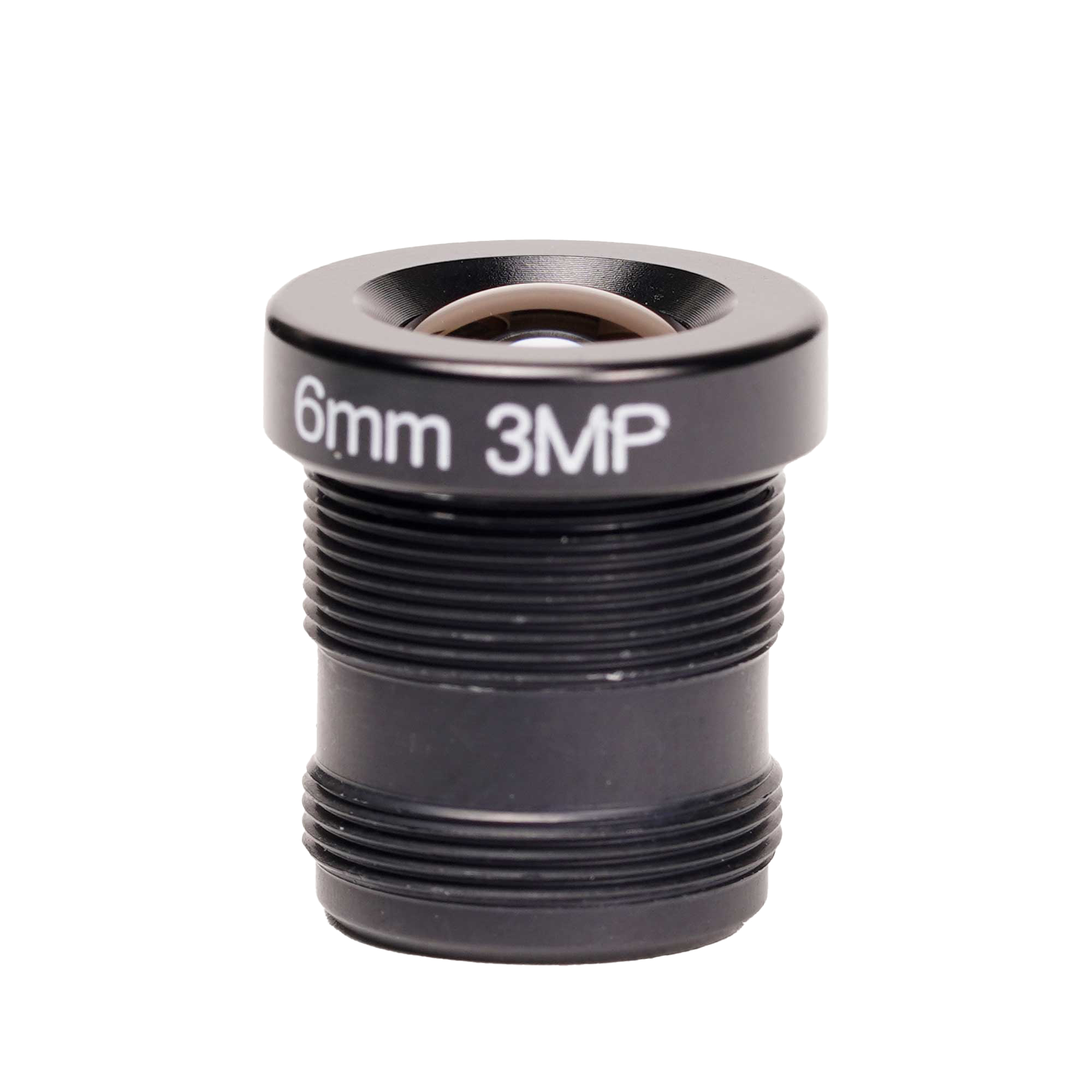

VIR60620-3M
|
6.0mm | 1/2.7" | 64.4 | 55.8 | 31.0 | 3MP |
|
DW9707
|
4.3mm | 1/3" | 84.1 | 65.9 | 48.8 | VGA |
|
31420-2M
|
3.1mm | 1/3" | 143.9 | 100.0 | 70.6 | 2MP |
|
29620-3M
|
2.9mm | 1/2.7" | 140.5 | 119.8 | 65.1 | 3MP |
|
25620-3M
|
2.5mm | 1/2.7" | 160.2 | 136.5 | 73.2 | 3MP |
|
DW2425
|
2.4mm | 1/3" | 163.7 | 120.5 | 86.9 | VGA |
|
DW2162
|
2.1mm | 1/3" | 143 | 117 | 77.0 | VGA |
|
17620-2MAS
|
1.7mm | 1/2.8" | 190.0 | 188.6 | 102.8 | 2MP |
|
14620-2M
|
1.4mm | 1/3" | 210.0 | 180.0 | 155.0 | 2MP |
|
