PRODUCT

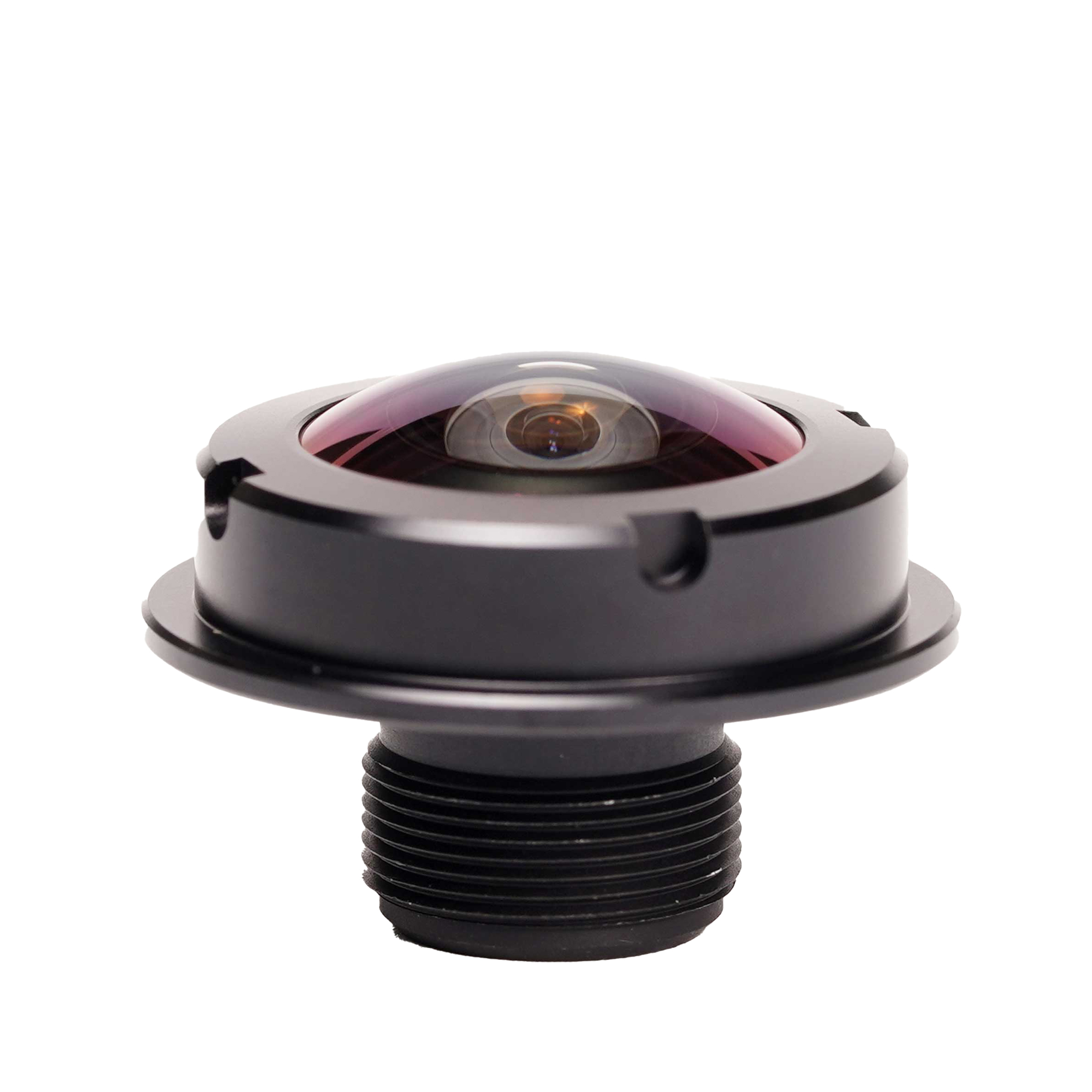

AVM
1.3MP
(H) 192.8

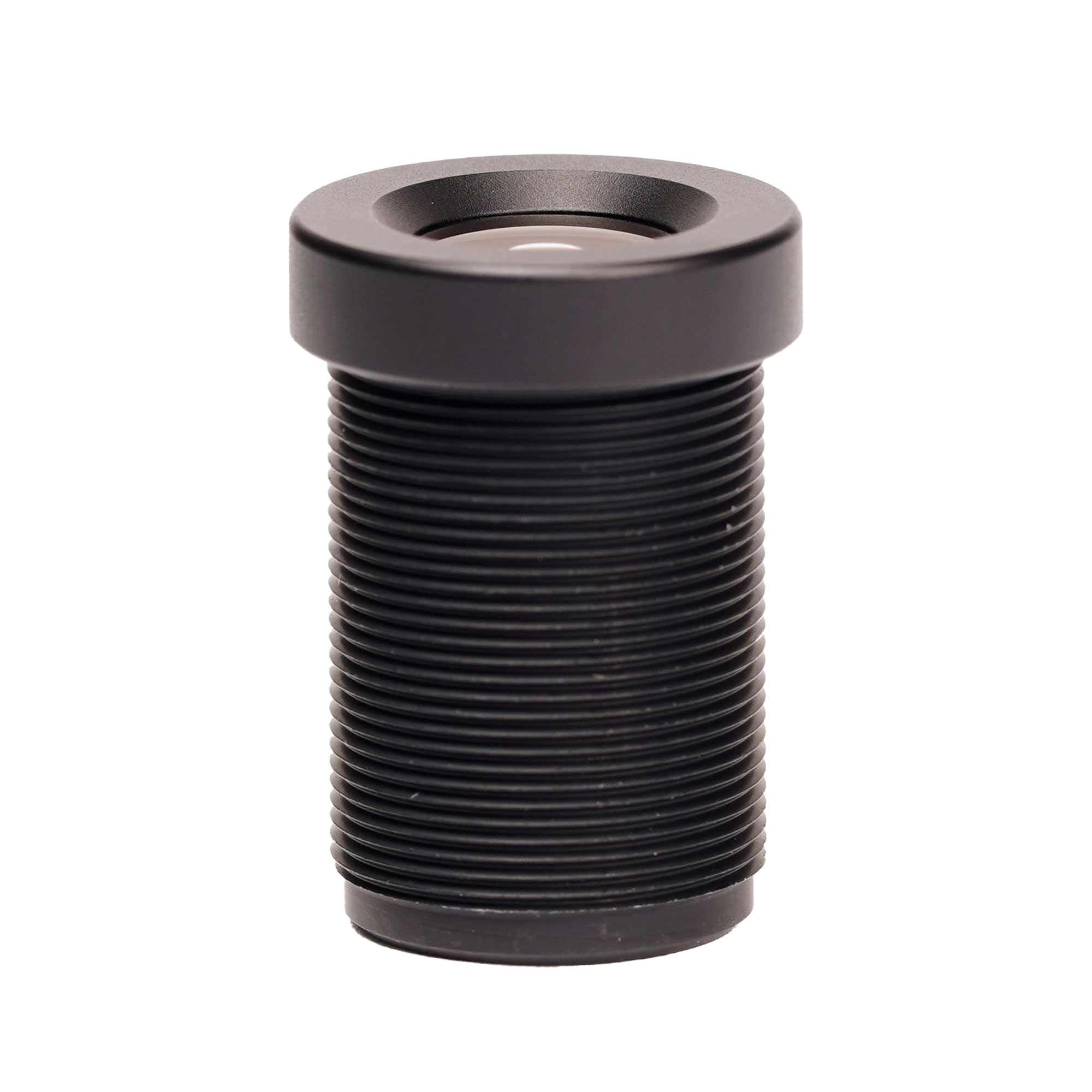

LDWS, DashCam
3MP
(H) 119.8
BSD
3MP
(H) 40.6
BSD
2MP
(H) 188.6
DMS, TOF
1MP
(H) 66.1

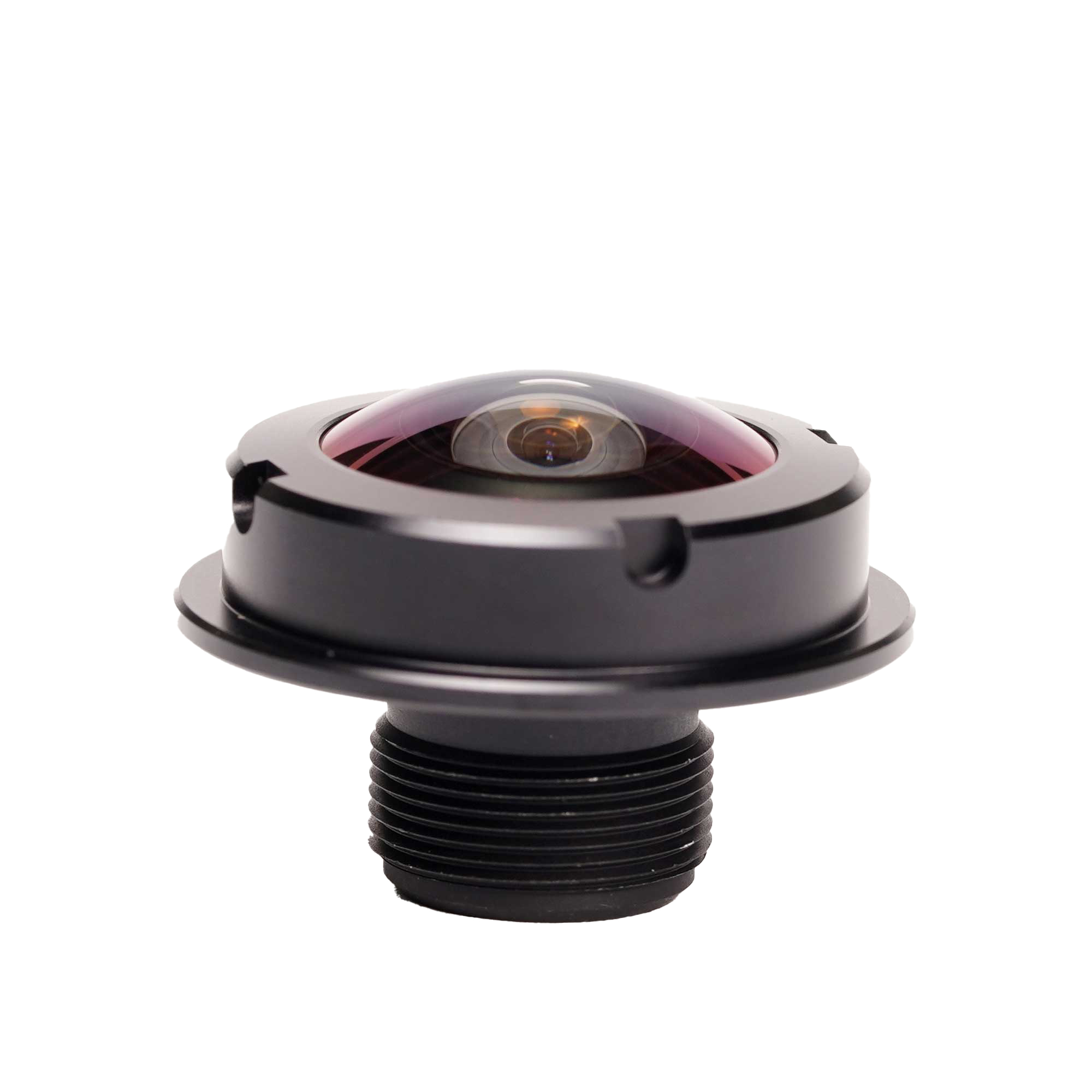

AVM
1.3MP
(H) 154.2
| Model | Focal Length | Sensor Size | Field of view | Resolution | Spec sheet | ||
|---|---|---|---|---|---|---|---|
| D | H | V | |||||
20828M
|
2.0mm | 1/2.5" | - | 178.2 | 89.9 | 1.3MP |
|
25728M
|
2.5mm | 1/2" | 158.0 | 120.0 | 101.2 | 1.3MP |
|
54422MAS
|
5.4mm | 1/3" | 61.2 | 49.8 | 37.7 | 1.2MP |
|
30520MAS
|
3.15mm | 1/4" | 76.9 | 66.1 | 41.6 | 1MP |
|
18610P-AS
|
1.85mm | 1/4" | 137.5 | 110.0 | 82.8 | VGA |
|
B47616BMC
|
4.7mm | 1/1.4" | 56.8 | 47.7 | 29.5 | 3MP |
|
18513AS
|
1.8mm | 1/4" | 140.0 | 110.0 | 84.5 | VGA |
|
18524MAS
|
1.8mm | 1/3" | 177.6 | 154.2 | 87.0 | 1.3MP |
|
15422AS
|
1.5mm | 1/4" | 181.4 | 139.4 | 103.0 | VGA |
|
12624MAS
|
1.2mm | 1/3" | 210.0 | 192.8 | 122.8 | 1.3MP |
|
VIR80620-3M
|
8.0mm | 1/2.7" | 46.3 | 40.6 | 23.2 | 3MP |
|
VIR60620-3M
|
6.0mm | 1/2.7" | 64.4 | 55.8 | 31.0 | 3MP |
|
29620-3M
|
2.9mm | 1/2.7" | 140.5 | 119.8 | 65.1 | 3MP |
|
10620MAS
|
0.9mm | 1/4" | 196.0 | 190.5 | 150.8 | 1.3MP |
|
