CUSTOMIZED

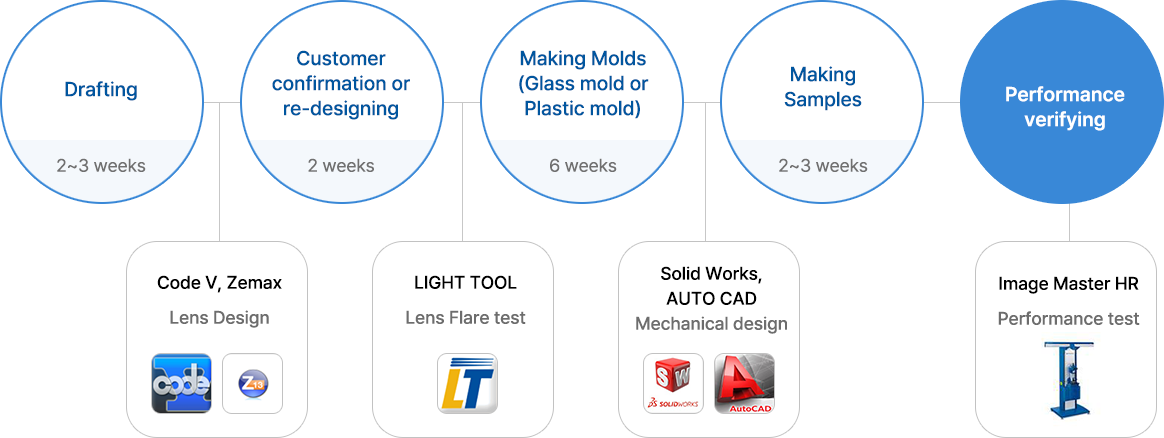

Making Samples
  • Make samples faster cooperating with our overseas branch and partners.
  • Verify the lens performance using Image Master HR
Designing
  • Use Code V, Zemax program
  • Review Flare and make lower sensitivity using Light Tool

  • Code V

  • Light Tool

Design Technique

Items Contents
Infrared Ray Lens Design with 940nm and 1100nm wavelength
-
Recent design trend changes(extended) 850nm into more than 940nm, IR range.
-
According to the specification for each application from customers, we can design lenses with more than 940nm IR range.

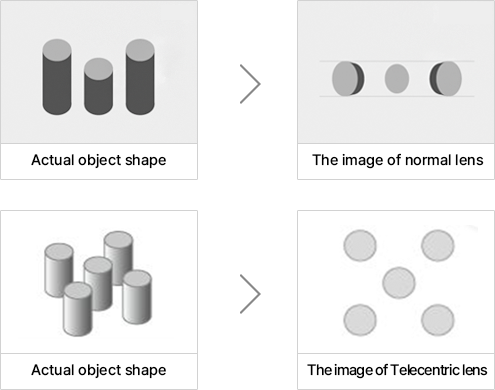

Telecentric Lens Unlike a normal lens designing, we design a lens letting the ray of the light enter to the sensor in parallel.
-
It is possible to see the original size of the object regardless of the distance.
-
Minimize the degradation of resolution due to aberration.
FOVEA Lens With a wide angle lens, we can design a lens focusing on the resolution of the center field by controlling EFL and the image height. (only if customer requests)
-
Improves the resolution of the center field

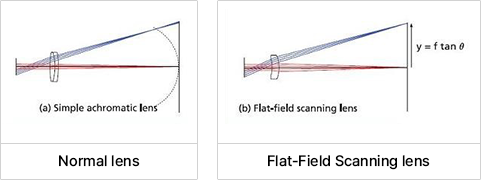

Flat-Field Scanning Lens Making the route of the light enter to the center and side of the lens horizontal, we can reduce distortion of both fields.
-
Reduce the difference of the distortion of the center/side or the video of short distance.

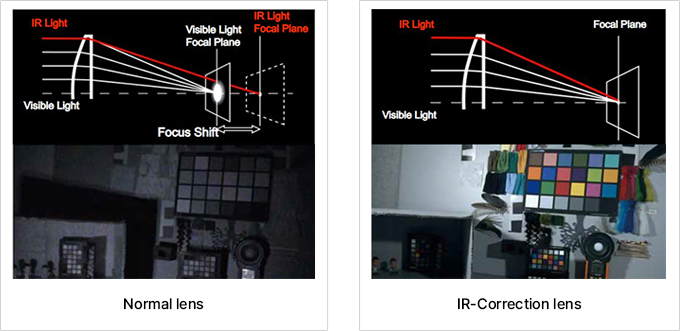

IR-Correction Lens Designing with the compromise of focusing position between Visible light and Infrared light, using ED glasses and aspherical materials.
-
High-quality images can be implemented for both Day and Night.
-
Applying an aspherical lens, high performance (Mega pixel) can be secured.
